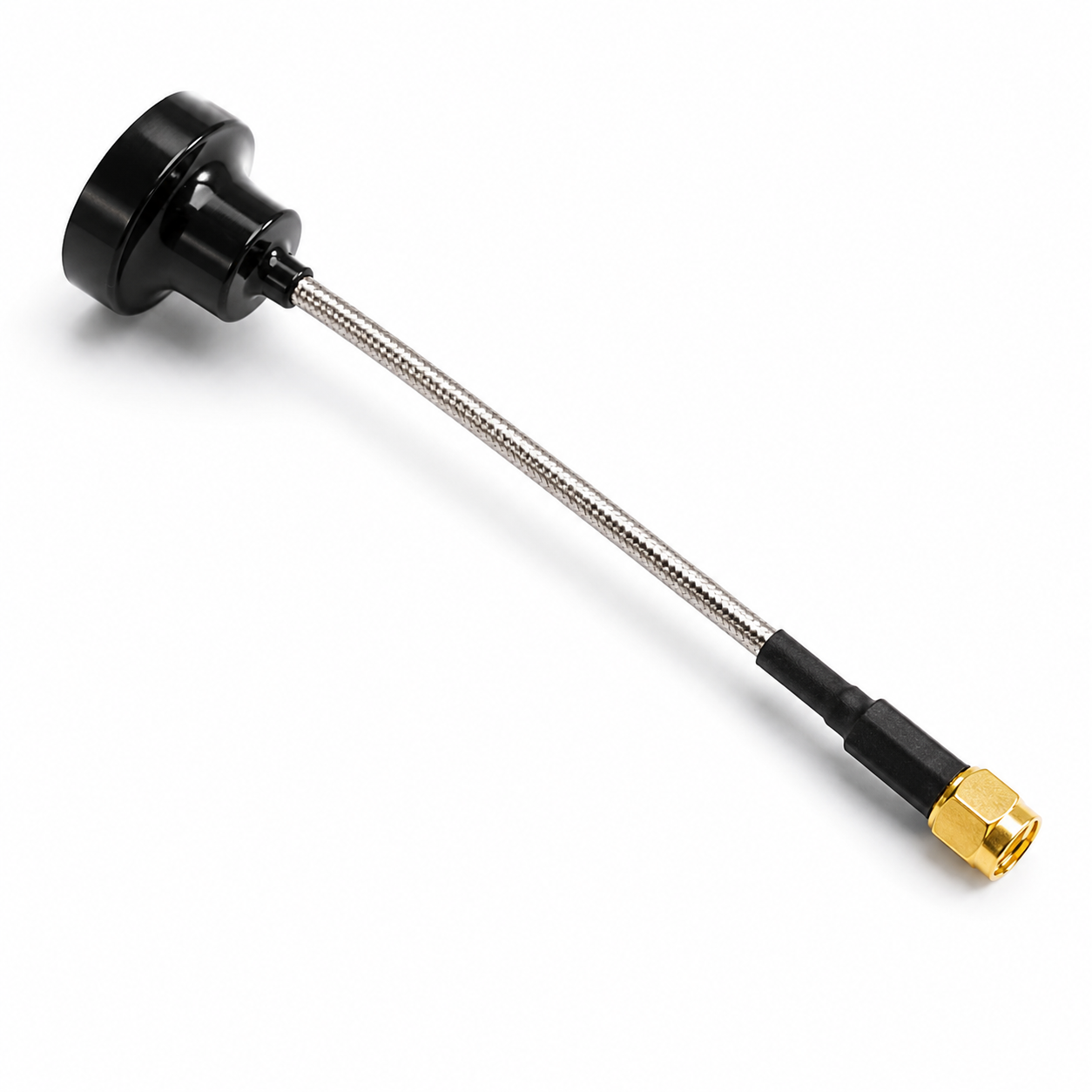

Periscope Antenna 5.8Ghz Omni

(3 customer reviews)

£8.95

The Periscope Antenna gets the active part of the antenna above your head for clearer signal for not only flying behind yourself but in all directions.



Clear
SKU: N/A Categories: , ,

Description

Periscope Antenna 5.8Ghz Omni

The Periscope Antenna raising the active part of the antenna above your head for clearer signal for not only flying behind yourself but in all directions.

Proven technology of the Periscope used from our Raptor range of small compact Omni antennas that deliver a smooth radiation pattern and a high axial ratio with its unique PCB pagoda construction designed by Maarten Baert.

Features

5.8Ghz above your melon with excellent omni directional

Tuned longer coaxial cable for minimal losses.

Unique PCB construction allows manufacturing within fine tolerances

Clearer video reception with upto 20% greater signal received than other omni antenna topology with higher gain

High Axial Ratio for reversed polarity rejection.

Robust injection moulded case for crash protection



Specification:

Centre frequency 5.8 GHz

Frequency Range: 5550 – 6050 MHz

Matching S11 < -20dB, VSWR <1.22

Gain: 1.09dB with efficiency: 92%

Axial Ratio <1.3

Beam width: 360 degrees

Left or Right Hand Circular Polarised ( LHCP or RHCP)

SMA 90 Degree Connector

Height: 138mm

Weight: 14grams



Credit:

Manufactured under License CC BY-SA 4.0 from Maarten Baert

www.maartenbaert.be



Package Content:

1x Periscope 5.8Ghz Antenna



Additional information

Weight 14 g
Dimensions 8.5 × 3.0 × 3.0 cm
Polarisation

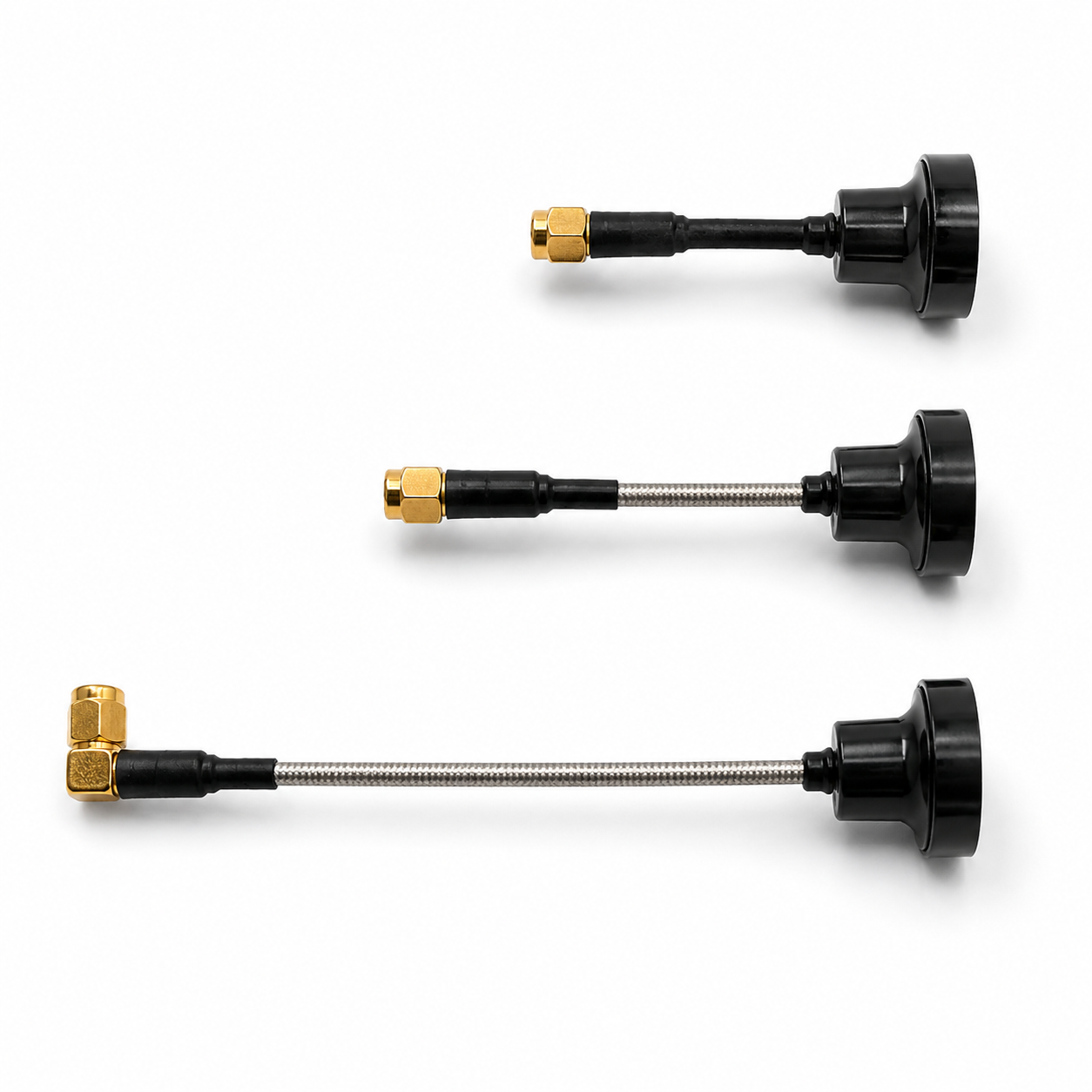

LHCP SMA 90degree, RHCP SMA 90degree, RHCP SMA Straight, RHCP RP-sma 90degree, LHCP RPsma 90degree, LHCP RPsma Straight

3 reviews for Periscope Antenna 5.8Ghz Omni

  1. George (verified owner)

    As of the 1.1.2019 I have use this antenna 5 times and I am very happy with it. The antenna stands well above my head and gives me a great signal

  2. George (verified owner)

    As always, great antennas from MenaceRC!
    Excellent reception 360 around your head.
    The 90 degrees adapter is already embedded and this will also save you a bit of signal loss.
    Perfect Fatshark antenna!

  3. CrunkleFloop

    Another fantastic product from Menace RC. I use this as a VTX antenna on my long range Mini Talon. Perfect clear signal.
