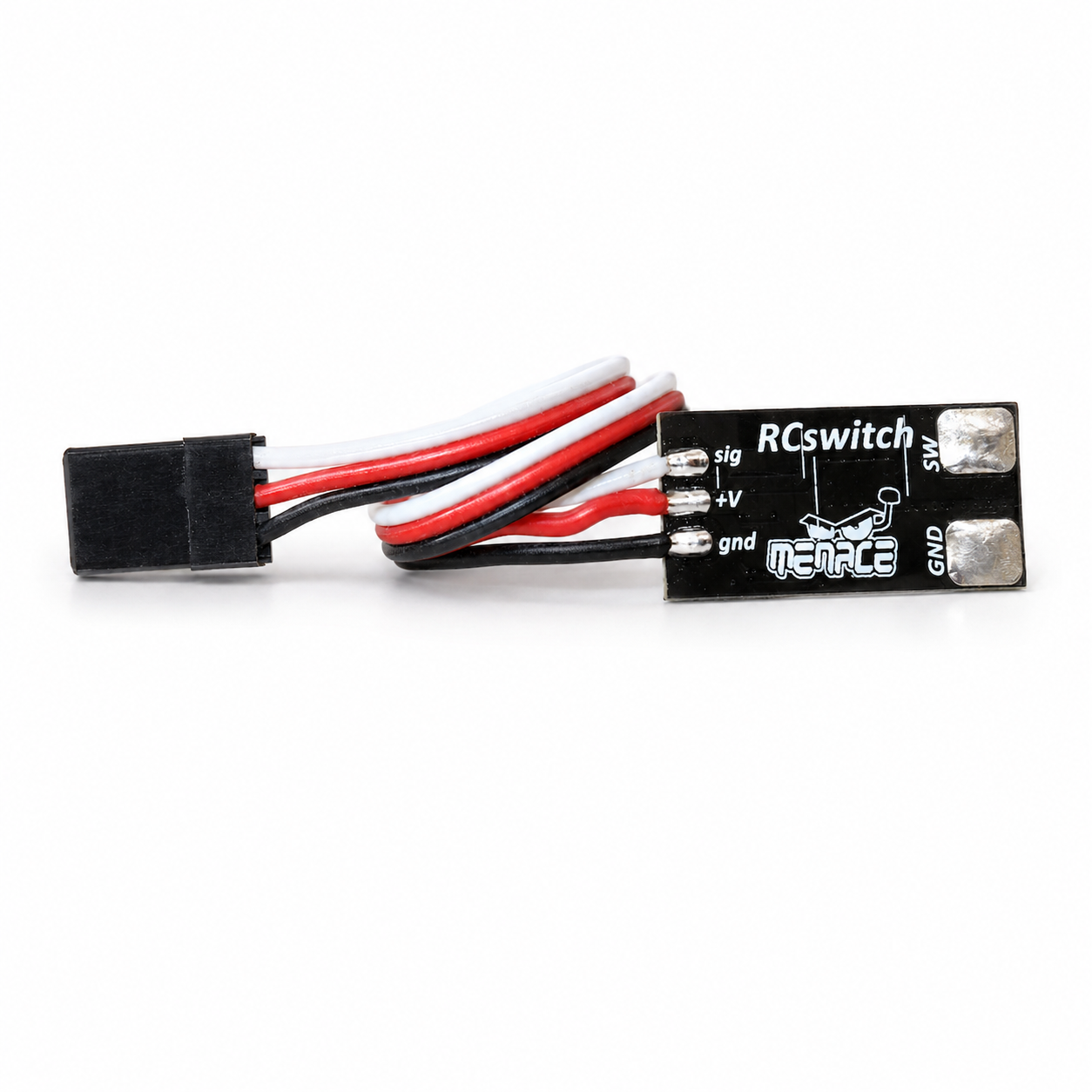

Menace RCswitch

(2 customer reviews)

£8.40

The RCswitch is capable of switching loads or auxiliary items ON/OFF from your radio.

In Stock and Shipping Now.

In stock (can be backordered)

SKU: rcswitch 54872-A5 Category:

Description

Overview

The RCswitch is capable of switching loads or auxiliary items ON/OFF by connecting to your receiver and controlling from any channel on your radio. When the PWM signal is over 1750uS it will complete the circuit. Making this perfect for switching higher power items on your models such as smoke machines, lights, sound effects, flaps, landing gear, triggering camera shutters etc…

Manual

Click here for the PDF Manual



Specification

Voltage: 40V

Current:  15A Continuous

Current: 50A peak

Signal PWM switch on:  >1750us

Signal voltage range: 4.75V to 8.4V

Weight: 3.2grams

Dimensions: L25.0 x W12.0 x H3.8 mm

Cable Length:  150mm

Package Contents

1x Menace RCswitch
1x Clear Heat shrink
1x Sticker

Additional information

Weight 15 g
Dimensions 6.0 × 4.0 × 1.0 cm

2 reviews for Menace RCswitch

  1. David (verified owner)

    Does exactly what it should do. Switch on for on, switch off for off unlike cheap ebay switch which needed to be toggled off and on to change.Even included a piece of heat-shrink to cover after soldering.

  2. welshlens (verified owner)

    Fantastic switch 15A Continuous 50A Peak if you are connecting direct to the receiver using a servo output or flight controller. I you’re switching led’s on and off you will need a lot of them to break this bad boy. Extremely small 25 x 12mm with a servo wire 150mm long and a small bit of heat sleeving so you can cover the switch when all wired up. You connect the ground wire in from your battery and the switch switches on and off the ground output pad found on the switch. This is not a low-quality product but all you would expect from a MenaceRC product built to perfection so not to let you down. You can use this switch in so many applications due to the power it can handle, controlling lights (You must have a look at the MenaceRC Cob led’s WOW), landing gear and many other power-hungry applications. I have not seen another on the market that has the same quality and power rating, so don’t hang about and get switched on with this bad boy and let the control be back in your hands.
