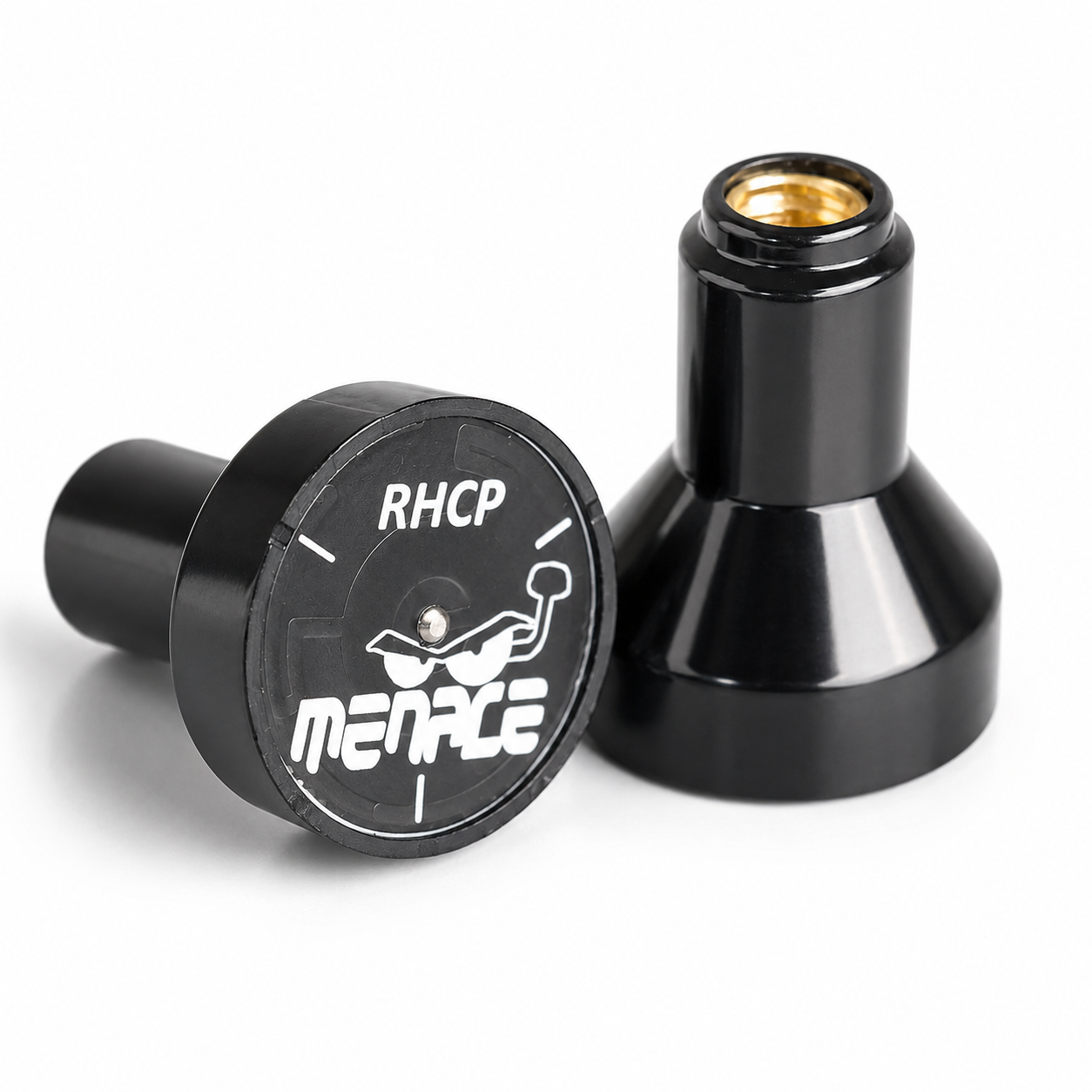

THRASHER Antenna 5.8Ghz Omni

Rated 5.00 out of 5 based on 2 customer ratings
(2 customer reviews)

£7.85

The THRASHER antenna, smallest robust pagoda design without compromise in performance for your racing or freestyle FPV drone.

Clear
SKU: N/A Category:

Description

No compromise in performance, just like its bigger brothers, the THRASHER delivers a smooth radiation pattern with one of the most proven highest axial ratio designs all in a cableless resilient polycarbonate case for protection.

Taking the popular pagoda antenna designed by Maarten Beart, Menace has redesigned it for the demanding FPV drone pilots, incorporating adjustments to make it compact, fully cased to avoid coax cable damaged along with efficient productionisation meaning that the reduced assembly operations brings you the lowest cost antenna at the highest of performance.

Features

Small 5.8Ghz Aero design with excellent omni directional pattern.
Can be TPU mounted without signal degradation.
Polycarbonate Case
Unique PCB construction allows manufacturing within fine tolerances
Gain 1.22db with a radiation efficiency of over 92%
Clearer video reception with up to 20% greater signal received than other omni antenna topology with higher gain.
High Axial Ratio for reversed polarity rejection
Ideal for racing or freestyle FPV drones and wings.

Specification:

Centre frequency 5.8 GHz
Frequency Range: 5645 – 5945 MHz
Matching S11 < -20dB, VSWR <1.22
Gain: 1.22dB with efficiency: 92%
Axial Ratio <1.3
Beam width: 360 degrees
Left or Right Hand Circular Polarised ( LHCP or RHCP)
SMA Connector
Dimensions: 32mm x 24.5mm (Mounting point is 12.5mm)
Weight: 7.3grams

Credit:
Manufactured under License CC BY-SA 4.0 from Maarten Baert
www.maartenbaert.be

Package Content:
1x Thrasher 5.8Ghz Antenna

Additional information

Weight 14 g
Dimensions 8.5 × 3.0 × 2.0 cm
Polarisation

LHCP Left SMA, RHCP Right SMA, Reverse RPSMA RHCP

2 reviews for THRASHER Antenna 5.8Ghz Omni

  1. Rated 5 out of 5

    Jon Hall

    The new Thrasher is the best antenna I’ve used. Compact, incredibly strong and perfect signal. What more could you want?
    The Thrasher is great for mounting in a TPU sleeve as the active elements are all on top so the signal is not affected, Ive been running them (and crashing them) for a while and haven’t had a single one break. In combination with the pico patch and periscope antennas, you can’t find a better quality signal.

  2. Rated 5 out of 5

    George (verified owner)

    The THRASHER antenna really lives up to it’s name. I only got it today and went straight out to give her a test, well I was having a very bad day I crashed 4 times within 4 packs. But the THRASHER lived up to it’s name and tuck a Thrashing and kept on ticking [ so to speak ] I had some great range with it and no break up in signal even behind trees. Great little thing with a Big Punch. [ On my Goggles I had the Periscope Antenna and the Invader Patch ]
