Description

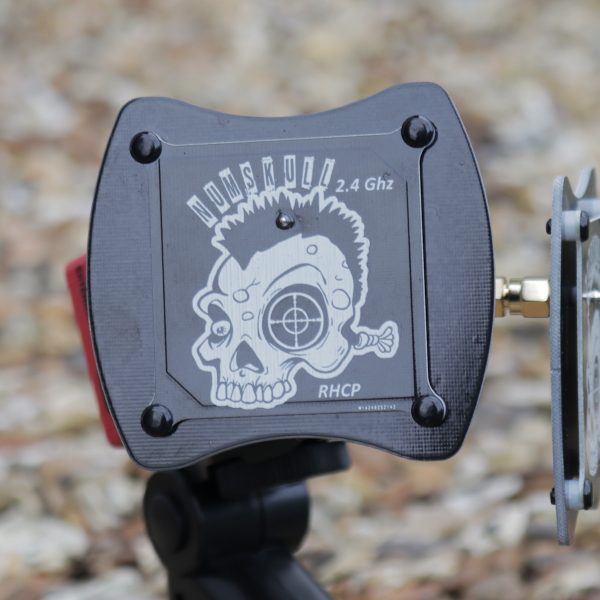

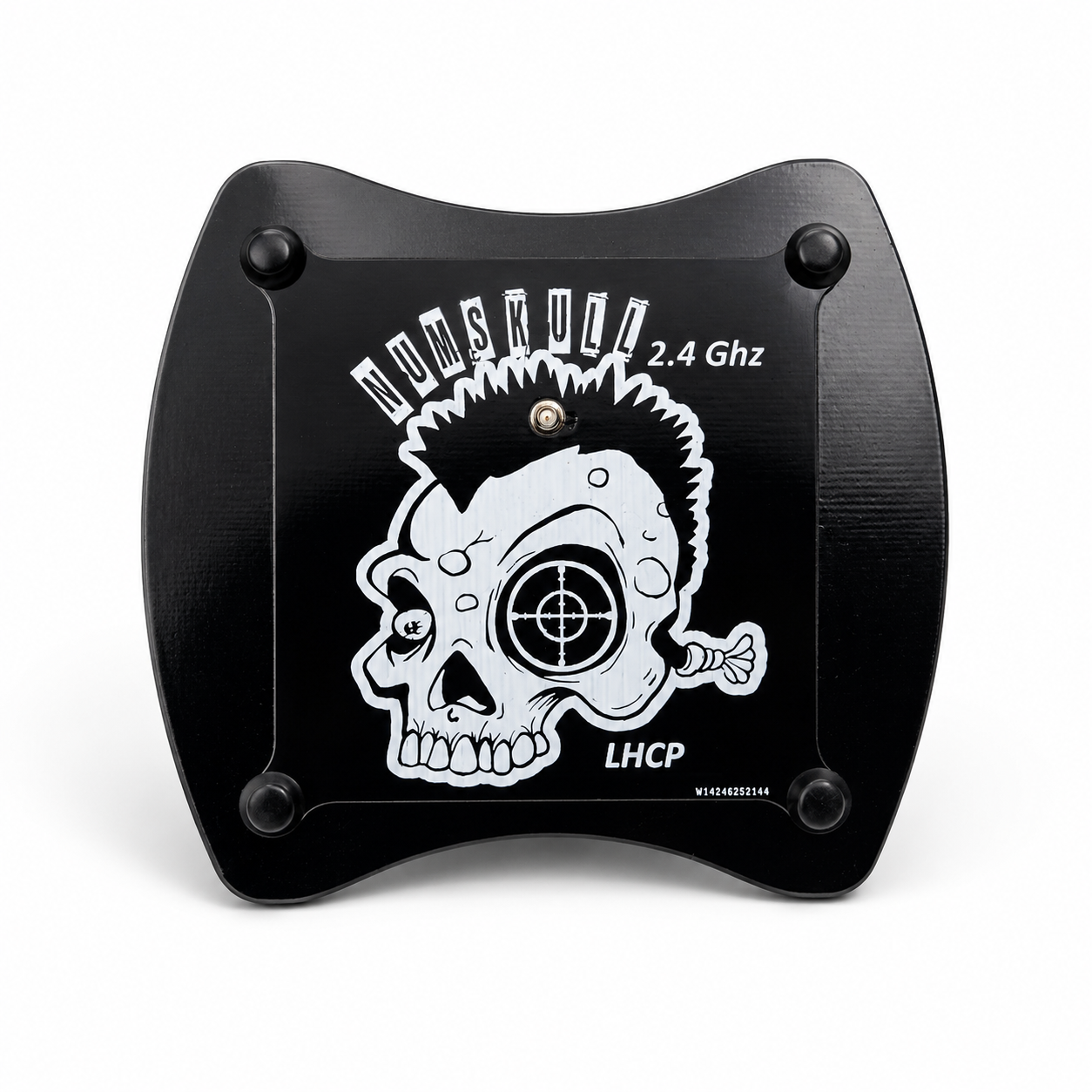

The NUMSKULL is our first 2.4Ghz antenna for receiving FPV video.
Perfect for the latest 2.4ghz goggle modules and at home on a basestation singularly or as part of a diversity receiving module.
Whether you are planning on using 2.4ghz on a Wing or a Drone, the Numskull’s performance will ensure you are getting the optimum video signal at close quarters as well at long range.
Features
Circular Polarized for left or right hand
Designed for goggles or base stations
Circular Polarized for left or right hand
Designed for goggles or base stations
Specification
Frequency Range: 2370 – 2510 Mhz
Gain: 8.0 dBi
Beam Width: 68° at -3db points
Left or Right Hand Circular Polarised ( LHCP or RHCP)
SMA Connector
Dimensions: 80mm x 73mm x 20mm
Weight: 32grams
Frequency Range: 2370 – 2510 Mhz
Gain: 8.0 dBi
Beam Width: 68° at -3db points
Left or Right Hand Circular Polarised ( LHCP or RHCP)
SMA Connector
Dimensions: 80mm x 73mm x 20mm
Weight: 32grams
Real World
Range in excess of 17.5km
Range in excess of 17.5km
Andrew Blunt –
this is the best i have used there is no comparison, image quality at 10.6 km which is my battery limit is just the same as it is in front of me,where the limit is i don’t know.
