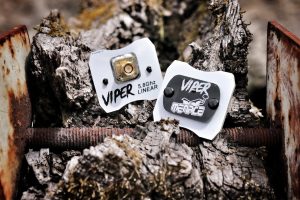

VIPER Antenna 5.8Ghz Linear Receiving Patch

(2 customer reviews)

£12.95

Extended Range
Ideal for Tiny Whoop, ToothPick and Micro Drones
Linear Polarised – Whip and Vee compatible
Small design on your goggles
Clear
SKU: N/A Categories: , ,

Description

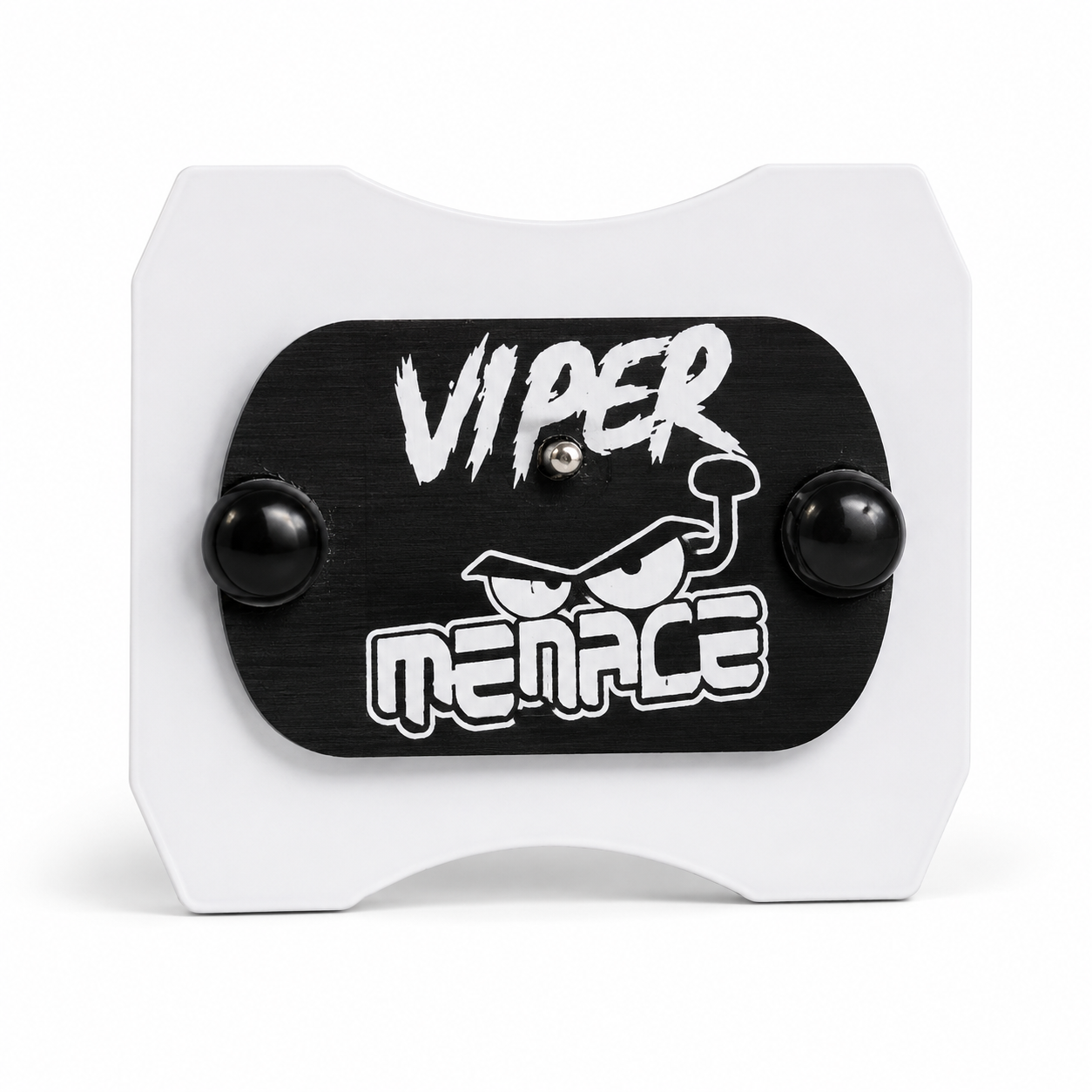

The VIPER antenna is a small linear receiving patch especially designed to work with the linear whips found on the Tiny Whoop, ToothPick and Micro Drones. The VIPER can extend the range further and deliver a clearer signal in the most demanding environments.



If you are using a linear whip antenna on your micro quad and using a circular antenna to receive you would be experiencing a 3db loss due to the mixed polarisation signals, for each 3db drop in signal that is a half in power so effectively your 25mW vtx will only be seen as transmitting 12.5mW. For increased range, clarity and to get your 3db back use the Menace VIPER antenna.



Built on the success of our proven linear Bandicoot antenna we have redeveloped a much higher sensitivity VIPER antenna in a smaller form where you are able to achieve a clearer signal which grants enriched penetration for indoor environments along with extended range in outdoor environments.

Features:
Extended Range
Ideal for Tiny Whoop, ToothPick and Micro Drones
Linear Polarised – Whip and Vee compatible
Small design on your goggles

Specification:
Frequency: 5800 Mhz
Bandwidth 300 Mhz
Gain: 8.0 dBi
Beam width:  90° (H + W)
Linear Polarised
SMA Connector (Fits Fatshark Goggles)
Dimensions: 42mm x 38mm x 19mm
Weight: 12grams

Package Contents:
1x VIPER Antenna



Additional information

Weight 11 g
Dimensions 4.5 × 4.1 × 1.6 cm
Connection

SMA, RPsma

2 reviews for VIPER Antenna 5.8Ghz Linear Receiving Patch

  1. joshuakirky (verified owner)

    Superb. For Linear antennas a pair of these is unbeatable. Barely any break up at over 200m with a 25mw vtx.

  2. Charlie Vonberg (verified owner)

    Bort this over a year ago when they first came out and even today is my daily driver along with the periscope antenna,outstanding performance and a must have for your goggles,i use SKYZONES and my old Aomway v1 commander and get great clear signal feed far away even at 25mw vtx power.if you fly Analogue with whip antennas this is a must have product!
