Stubby Antenna 5.8Ghz Omni

5 out of 5 based on 5 customer ratings
(5 customer reviews)

£12.00 £9.00

The STUBBY RAPTOR antenna NOW even smaller compact Omni less chance of getting it caught on that racing gate or tree.

RHCP now in stock and shipping,  LHCP will be in stock in a few days.

Clear
SKU: N/A Category:

Product Description

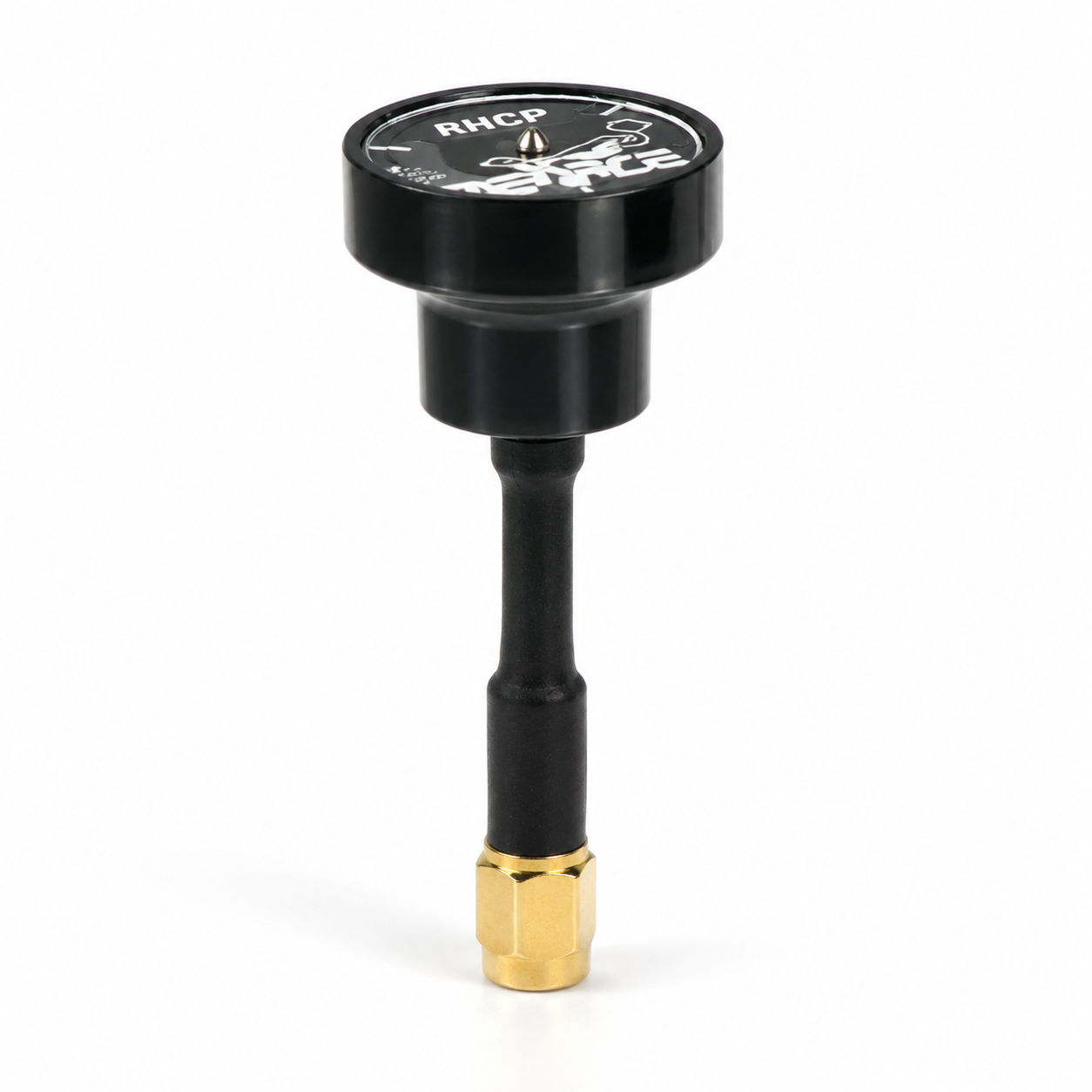

Stubby Raptor Antenna 5.8Ghz Omni

The STUBBY RAPTOR antenna NOW even smaller compact Omni less chance of getting it caught on that racing gate or tree.



No compromise in performance, just like its bigger brother, the STUBBY RAPTOR delivers a smooth radiation pattern and a high axial ratio with its unique PCB pagoda construction designed by Maarten Baert.

Features

Small 5.8Ghz Aero design with excellent omni directional pattern

Unique PCB construction allows manufacturing within fine tolerances

Gain 1.09db with a radiation efficiency of 92%

Clearer video reception with upto 20% greater signal received than other omni antenna topology with higher gain

High Axial Ratio for reversed polarity rejection, ideal for send and receive as a pair.





Specification:

Centre frequency 5.8 GHz

Frequency Range: 5550 – 6050 MHz

Matching S11 < -20dB, VSWR <1.22

Gain: 1.09dB with efficiency: 92%

Axial Ratio <1.3

Beam width: 360 degrees

Left or Right Hand Circular Polarised ( LHCP or RHCP)

SMA Connector

Strengthened coax to SMA method

Sleeved Coax cable

Height: 62mm

Weight: 9.4grams



Credit:

Manufactured under License CC BY-SA 4.0 from Maarten Baert

www.maartenbaert.be



Package Content:

1x Raptor 5.8Ghz Antenna



Additional Information

Weight 14 g
Dimensions 8.5 x 3.0 x 3.0 cm
Polarisation

LHCP Left SMA, RHCP Right SMA
